Electron laser microscope
Design concept
The design concept of this electron laser microscope may be to combine modern technology and aesthetics, aiming to provide high-precision scientific observation tools while showing a professional and high-end image in appearance.
1. Laser light source: Using laser as the light source, laser has high brightness and monochromaticity, which can provide clearer images.
2. Scanning system: The laser is focused on different points of the sample through the scanning system, and the sample is scanned point by point.
3. Confocal principle: Using the confocal principle, only the fluorescence signal from the focal plane is collected, and the signal from the non-focal plane is excluded, thereby improving the clarity and resolution of the image.
4. Detector: Use a photomultiplier tube or other detector to collect the fluorescence signal and convert it into a digital signal to form an image.

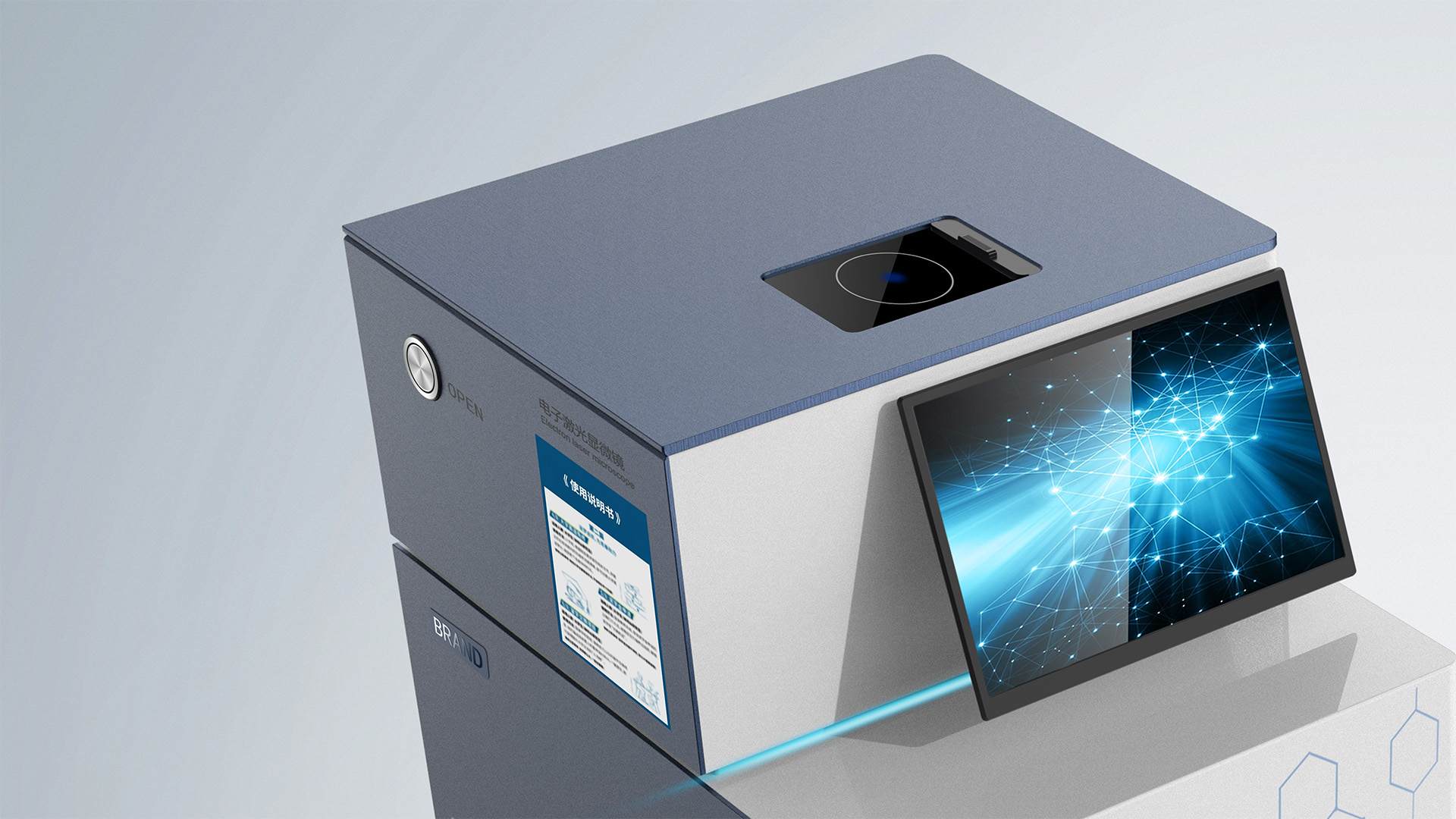

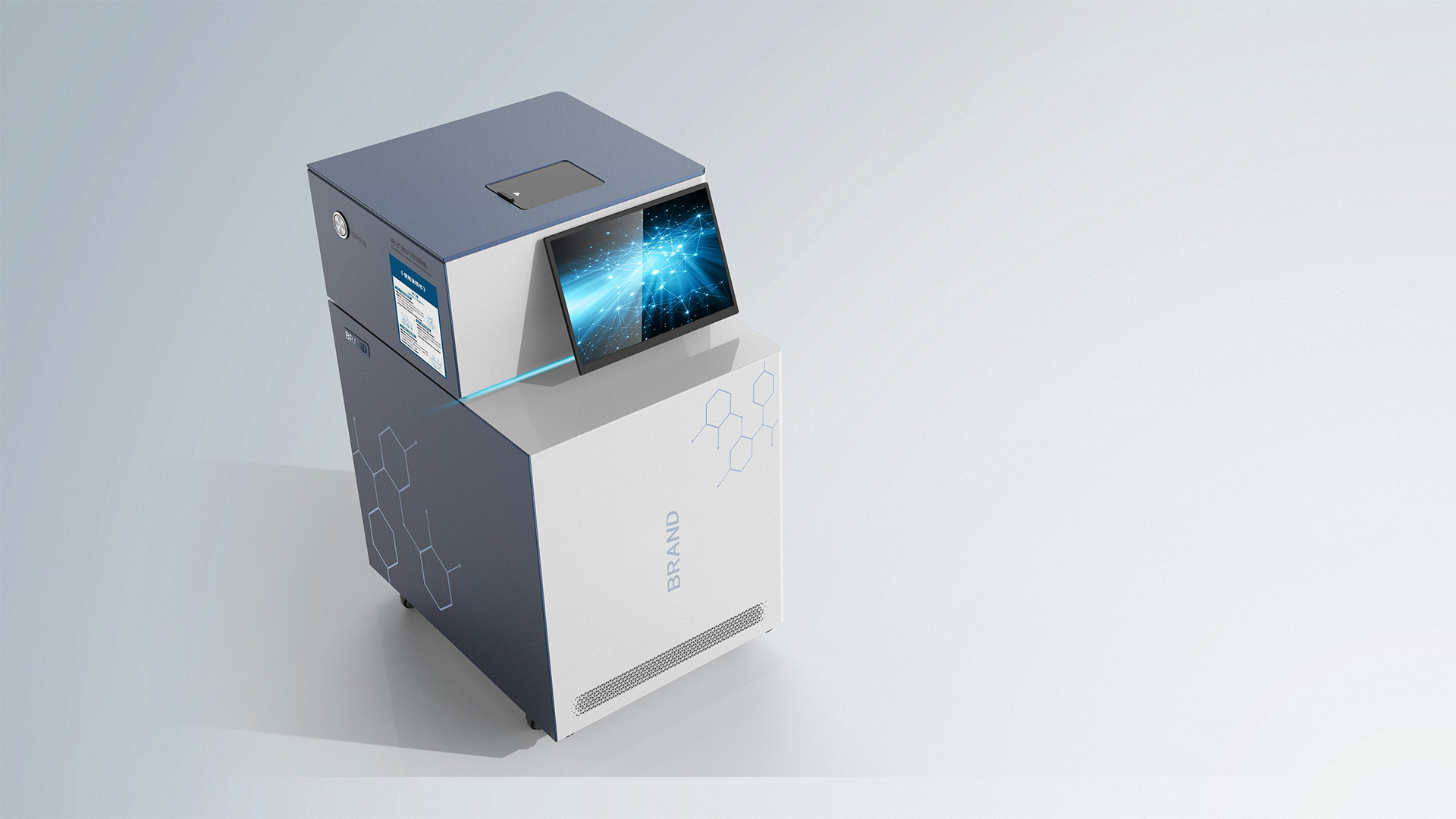

Overall shape
1. Modern and technological sense: The appearance adopts a modern design, with the main colors of gray and white, matched with blue lighting elements, giving people a high-tech feeling.
2. Hexagonal pattern: There is a hexagonal pattern design on the surface of the device. This geometric pattern increases the technological and modern sense of the appearance.
3. Integrated screen: The device is integrated with a display screen, which can be directly observed and operated, making it convenient for users to use.
