Dumpling machine design plan

‌Core components‌: Dumpling machines usually include core components such as dough hopper, filling hopper, forming mold and transmission device. ‌Working principle‌: Put the kneaded dough into the dough hopper, put the filling in the filling hopper, and drive the transmission device through the motor to drive the various components to work together. The dough is extruded and conveyed to form a dough belt with uniform thickness, and the filling is accurately pushed onto the dough belt. Then, under the action of the forming mold, the dough belt wraps the filling and cuts into dumplings with regular shapes and uniform sizes.

Working principle

The motor drives the transmission device to drive the dough hopper and the filling hopper to work together. The dough is squeezed and conveyed to form a dough band with uniform thickness, and the filling is accurately pushed onto the dough band. Under the action of the forming mold, the dough band wraps the filling and is cut into dumplings of regular shape and uniform size.

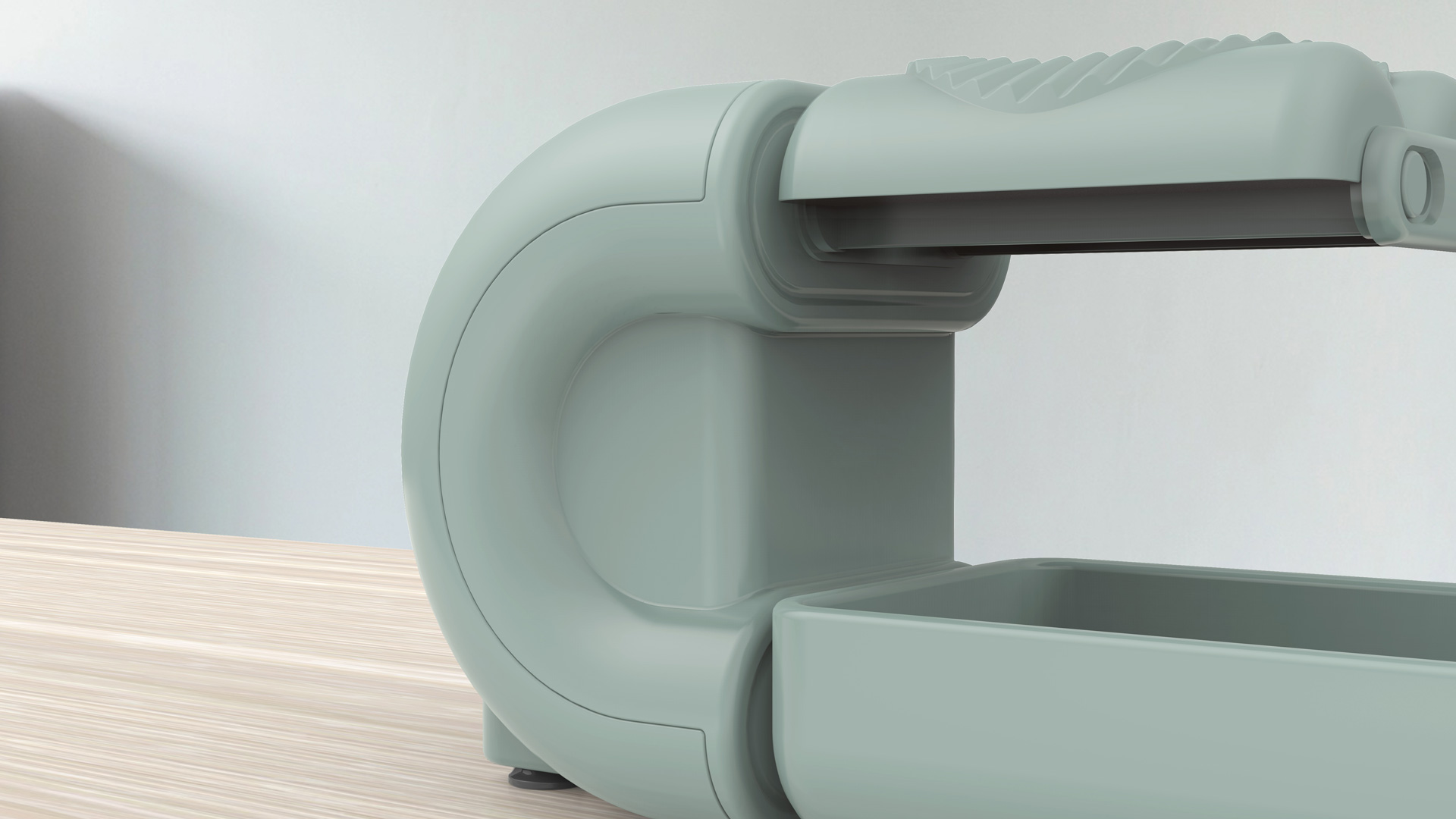

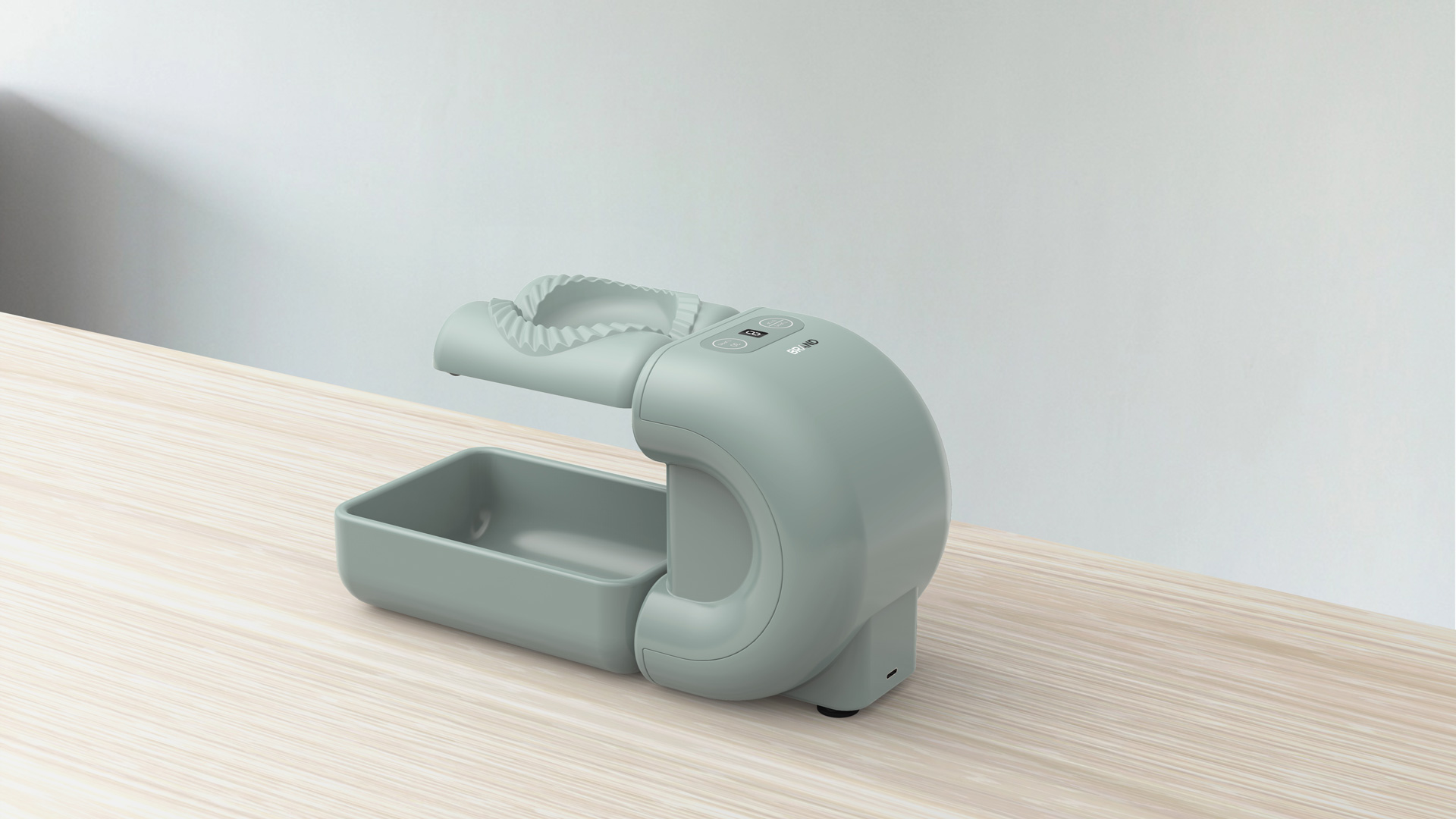

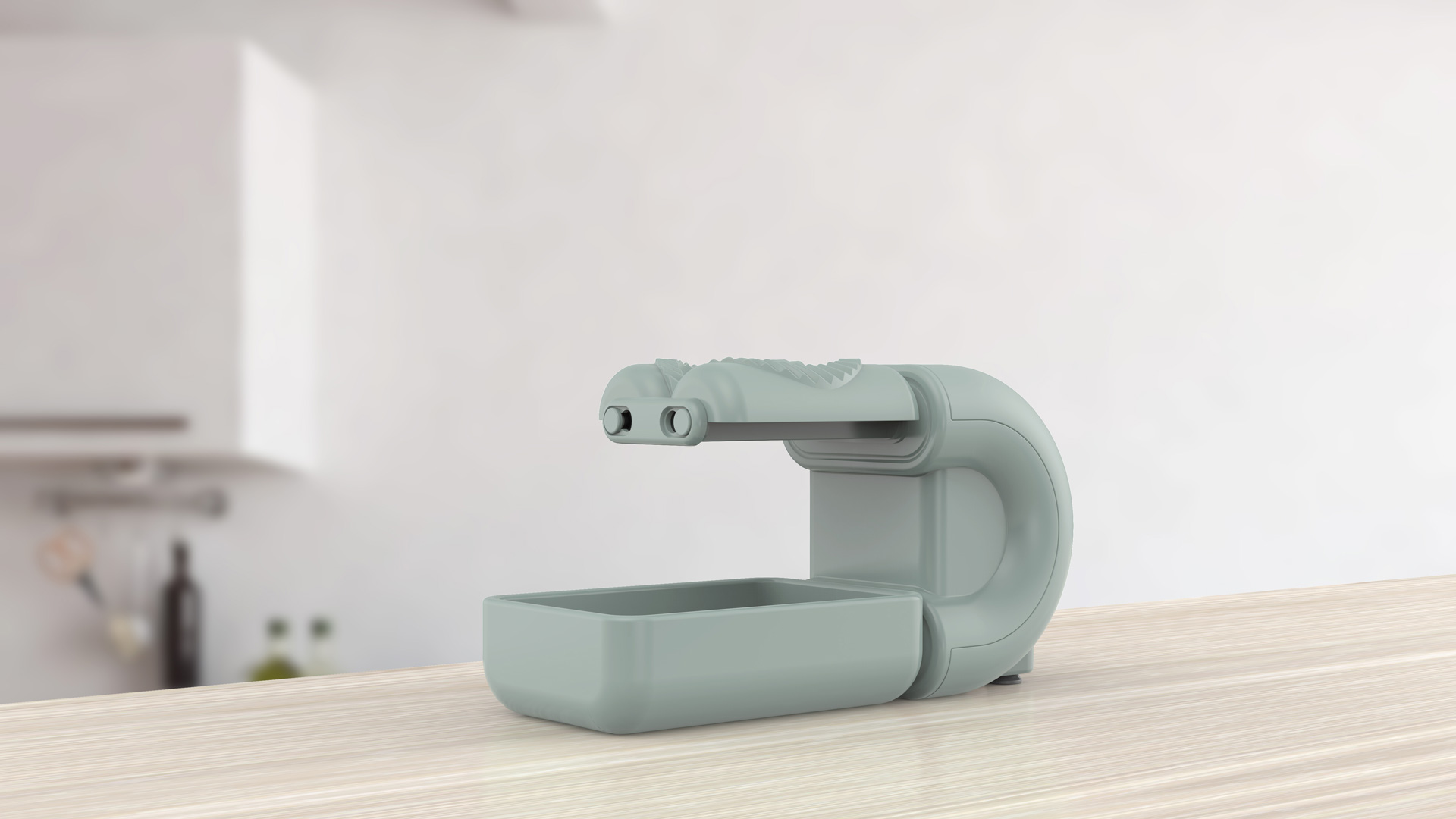

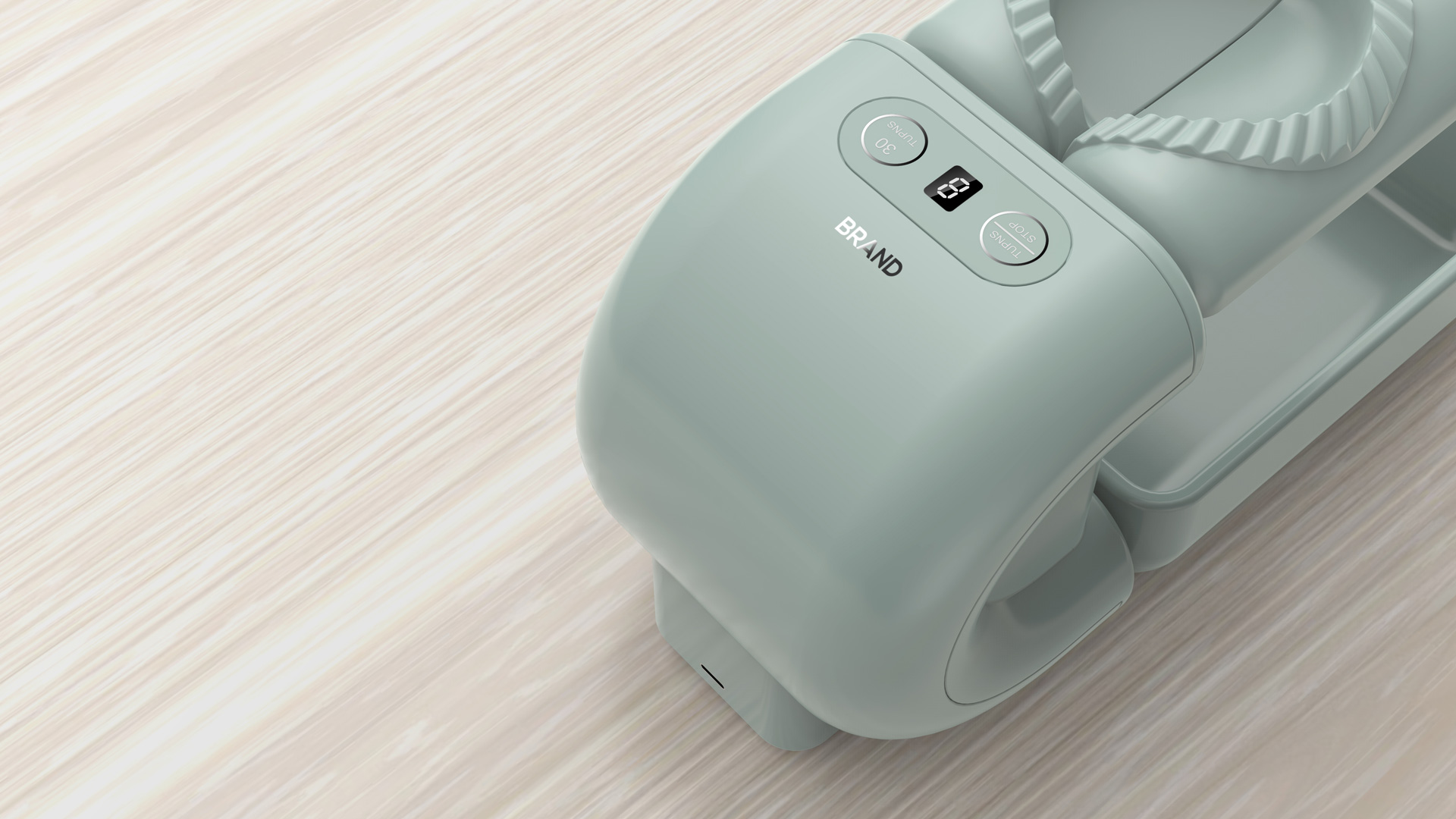

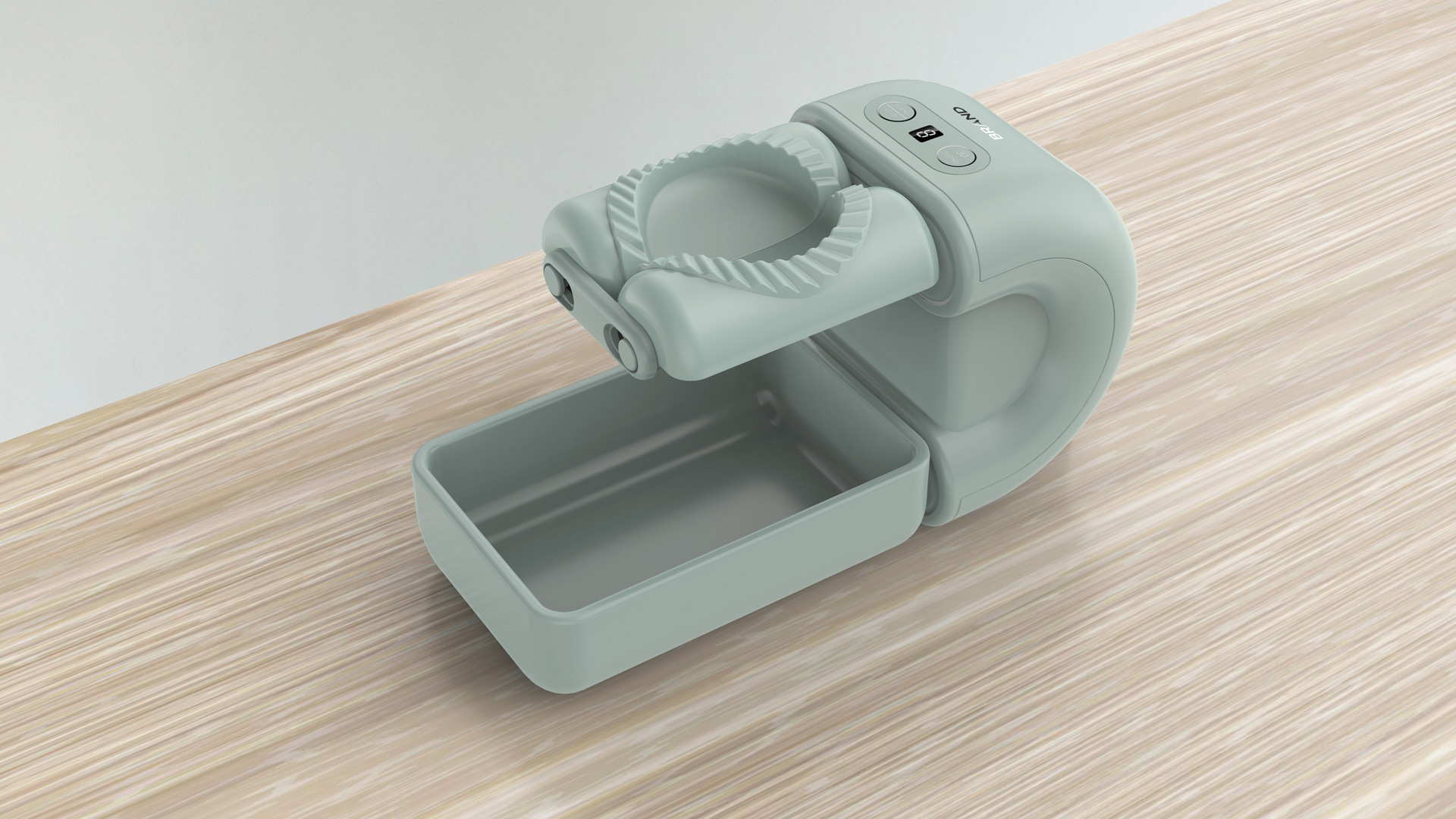

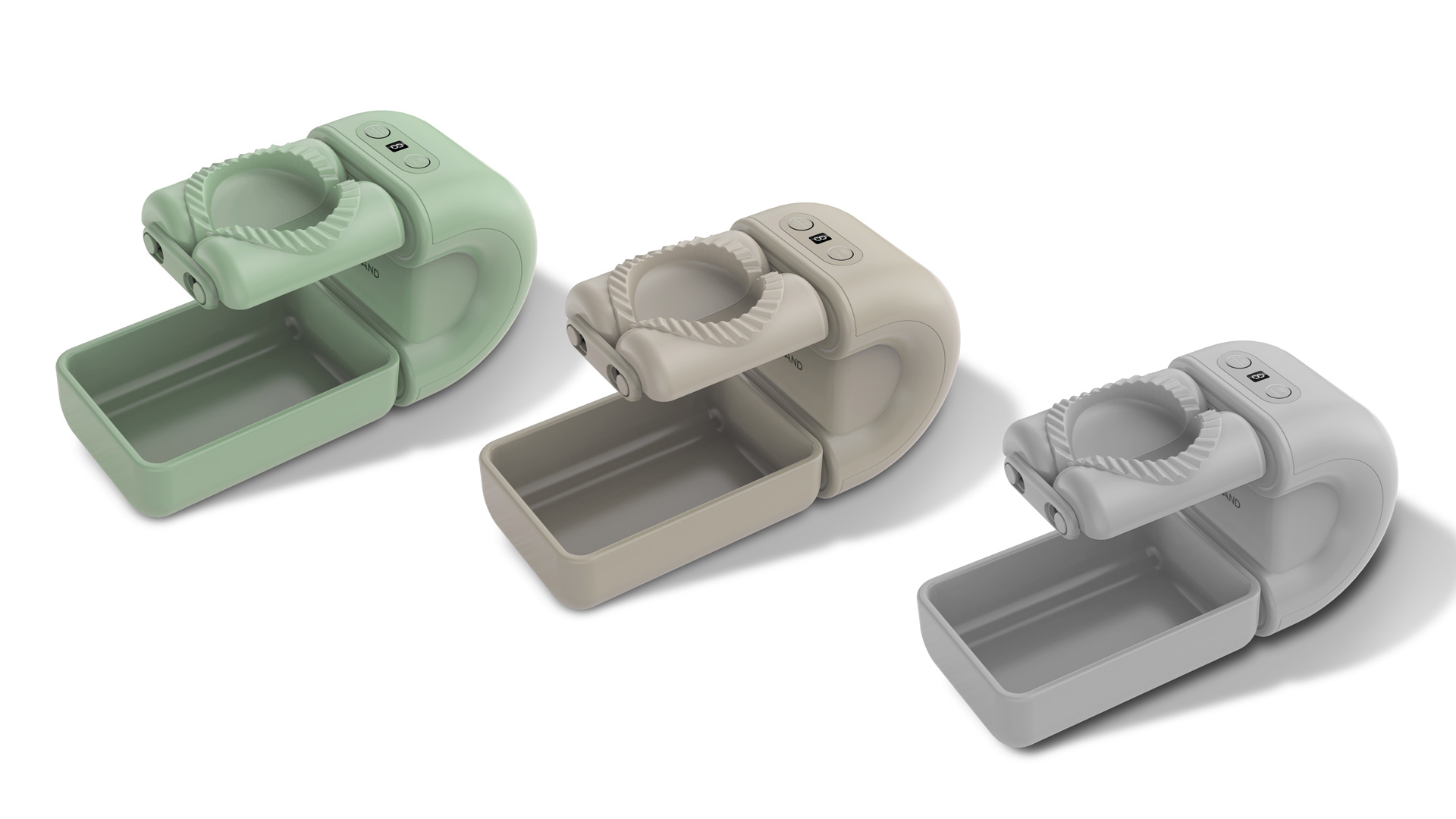

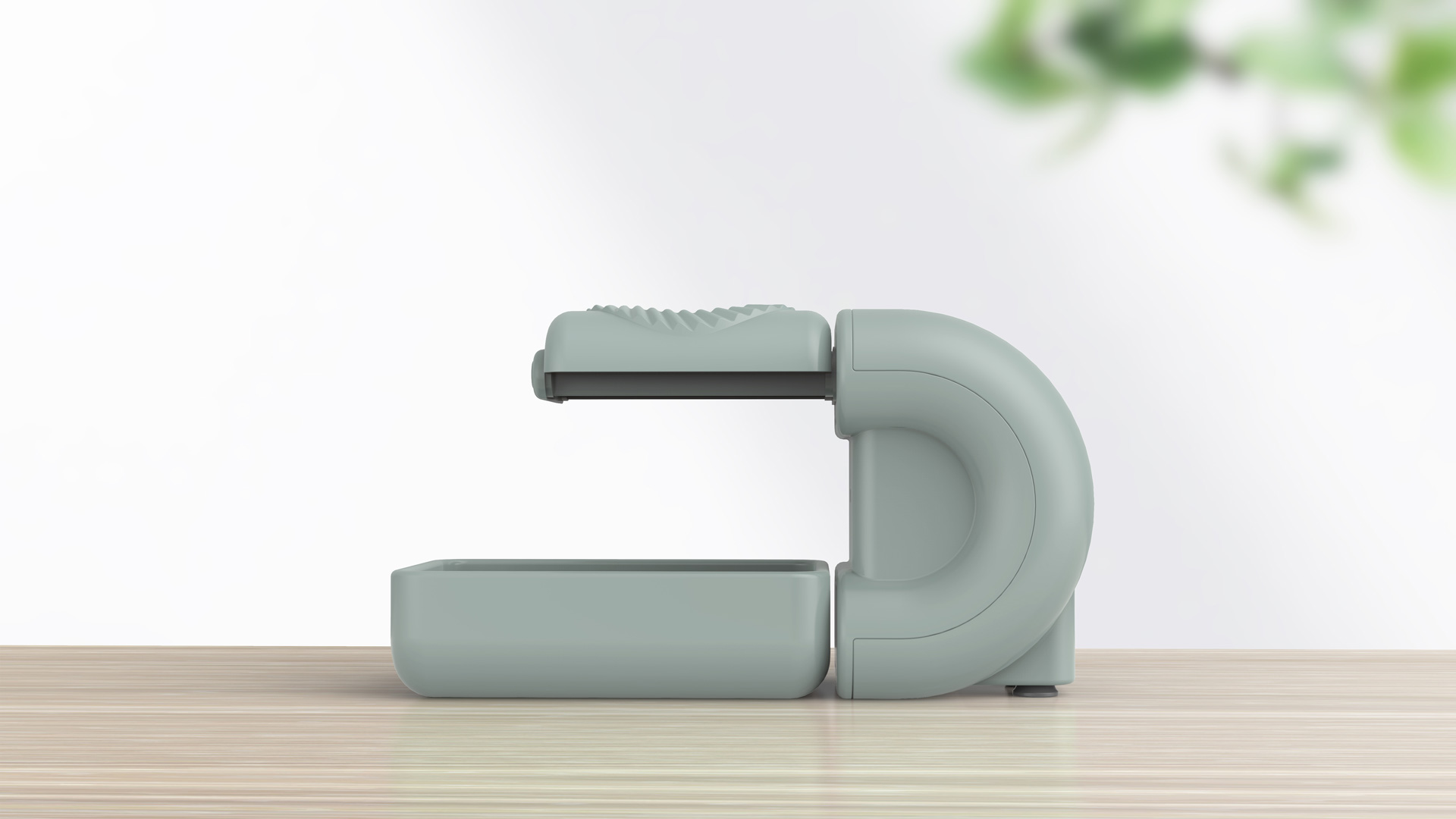

Overall shape

The overall shape concept of the dumpling machine mainly includes the following aspects:

Practicality: Compact and efficient: The design should pursue the maximum utilization of space to ensure that the machine can efficiently complete the dumpling production process while occupying the minimum space. Easy maintenance: Consider the easy disassembly and maintenance of the equipment, such as designing detachable parts and easy-to-clean surfaces, so that users can perform daily maintenance and troubleshooting.

Aesthetics: Modern and simple: The simple lines and smooth curved surface design make the dumpling machine look modern and warm. ‌Color matching‌: Choose a color matching that matches the kitchen environment, such as white, silver or stainless steel, which is easy to integrate into the kitchen environment and can also highlight the professionalism of the equipment.

Solution
Solution

Designing an efficient, intelligent and easy-to-use dumpling machine to meet the needs of home and commercial kitchens for dumpling making. By integrating modern technology with traditional food production technology, the automated production of dumplings is realized, production efficiency is improved, and the taste and quality of dumplings are guaranteed.
